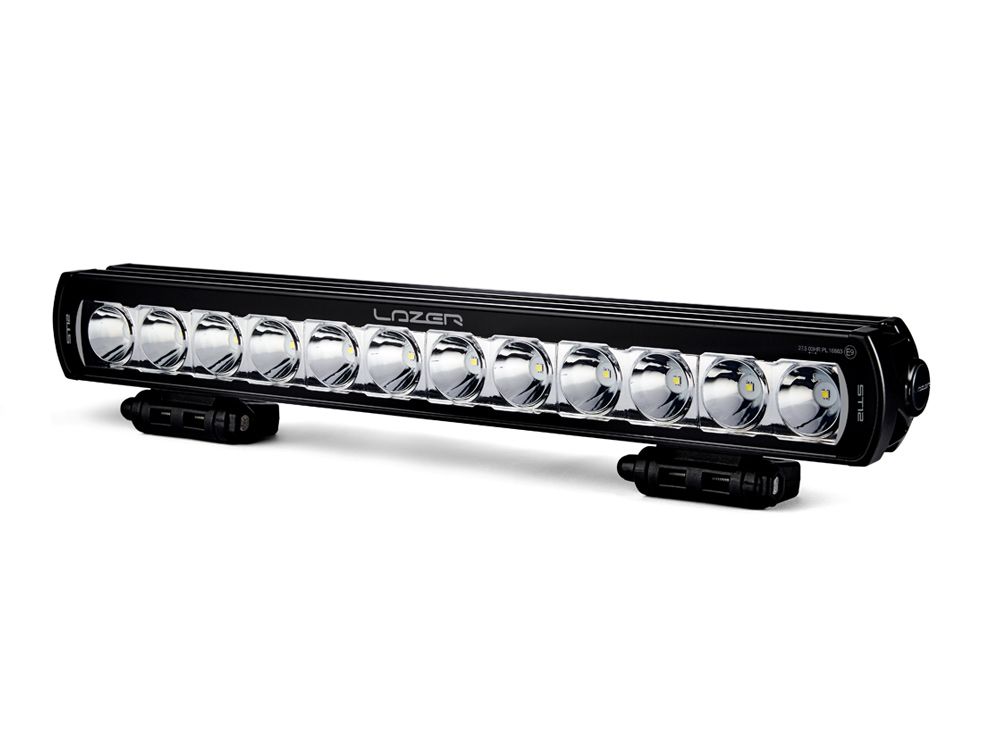

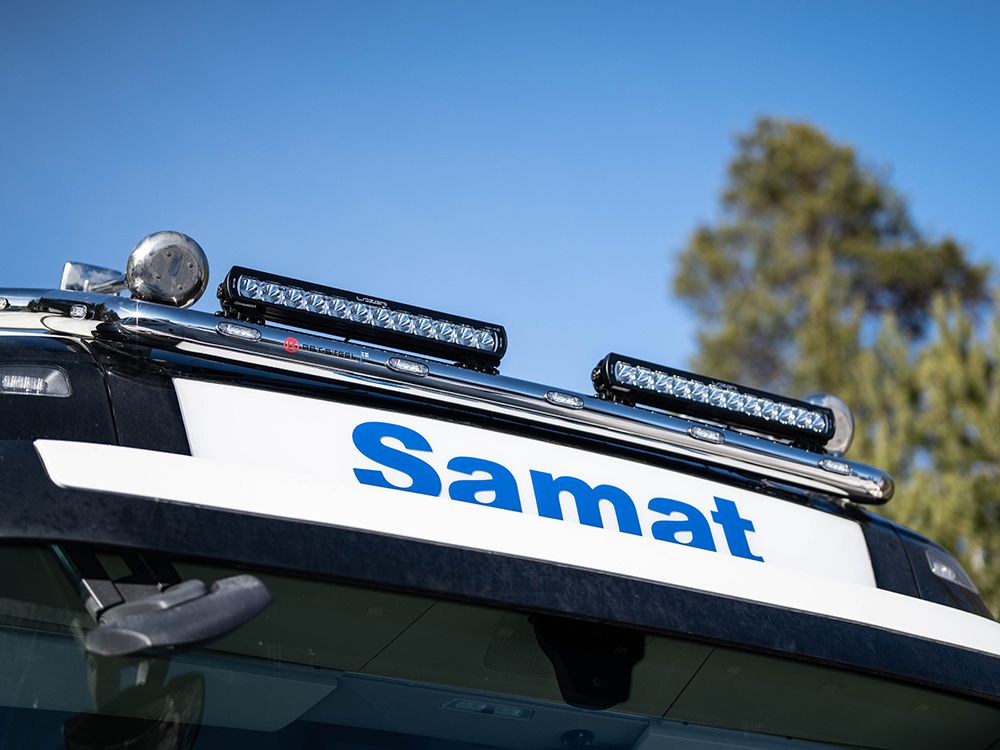

Lazer ST12 Evolution

The ST / T Evolution range of products feature highly efficient, premium ‘bin’ 11W LEDs in combination with vacuum-metallised conical optics to deliver a powerful beam pattern with wide spread. This makes the products especially well-suited to rural and off-road applications. Incorporating the same electrical and product design across both ST and T lights, the former indicates lights that are UNECE certified to Regulation 112 as high beam driving lights, while the latter indicating the larger light bars not certified and intended for off-road use only operated via an independent switch.

Key Features

• High density, premium ‘bin’ 11W LED technology
• 5000K LED colour temperature and 80CRI maximises sharpness and definition
• Ultra-reflective, vacuum-metallised conical optics deliver excellent spread
• Seamless, low profile design facilitates installation and avoids dirt/ice accumulation.
• Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 112 Class B Driving Lights for on-road high beam function
• UNECE approved Reg 10
• IP68 watertight
• Supplied with pre-wired male/female 2-pin superseal connectors
• 5-year warranty (2-year for non-automotive/industrial applications)
• Made in the UK

Specifications

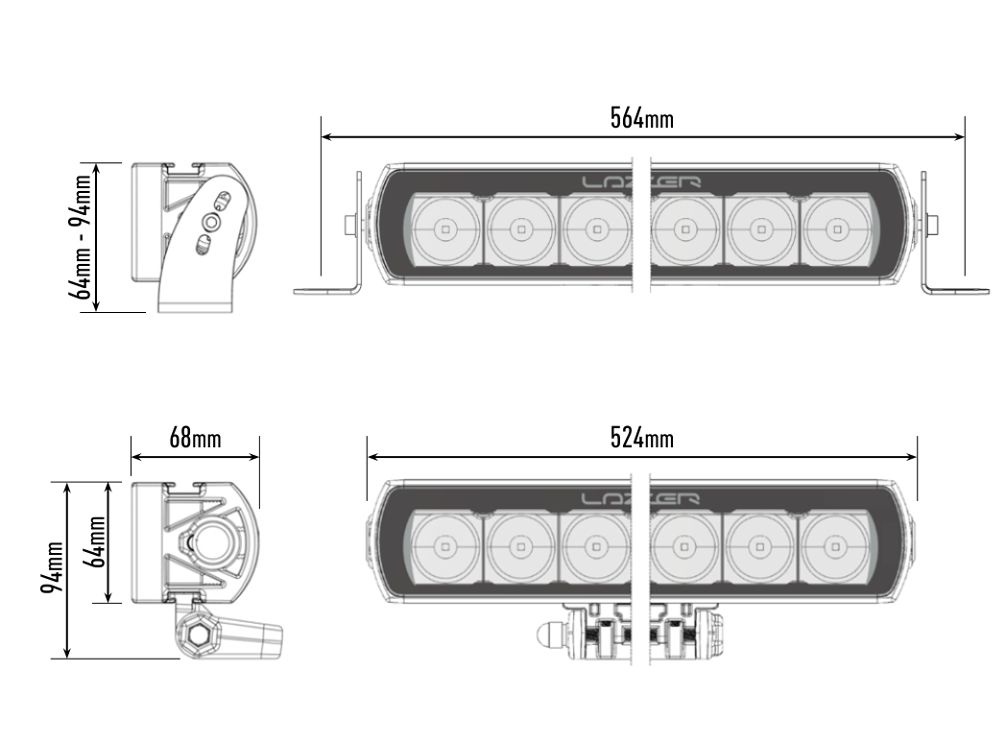

• W x H 64 x D 68 mm

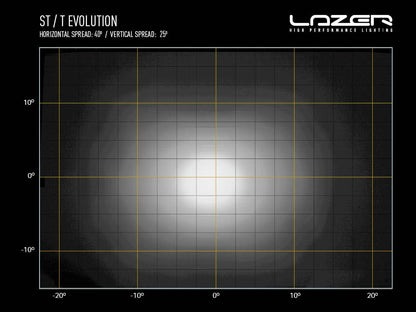

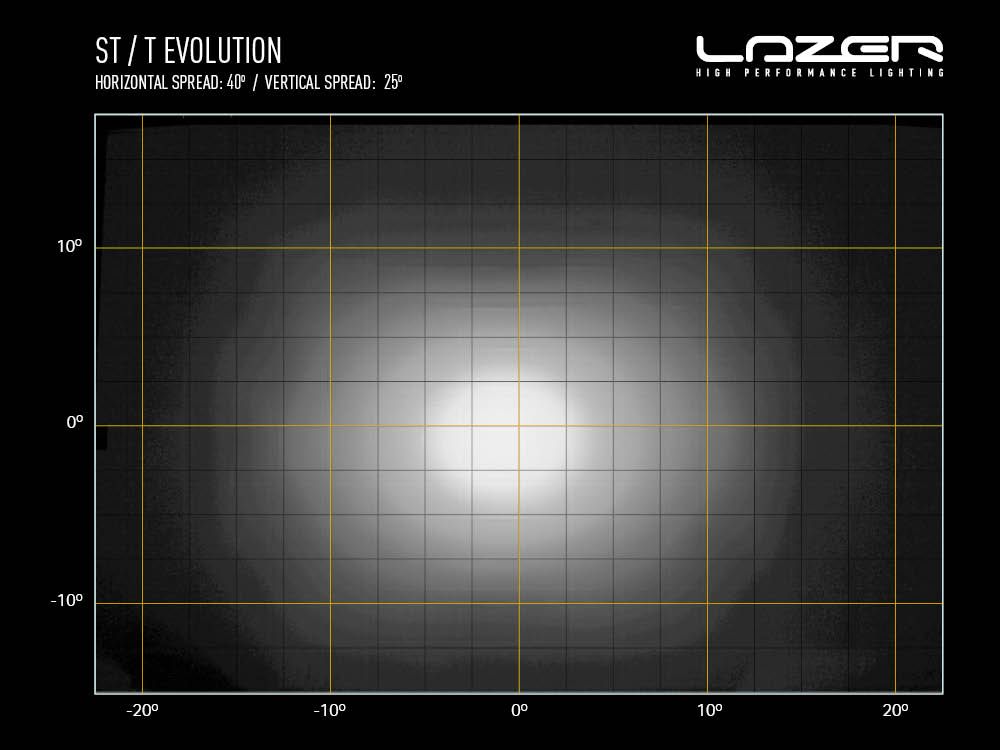

• Horizontal Beam Angle 40°

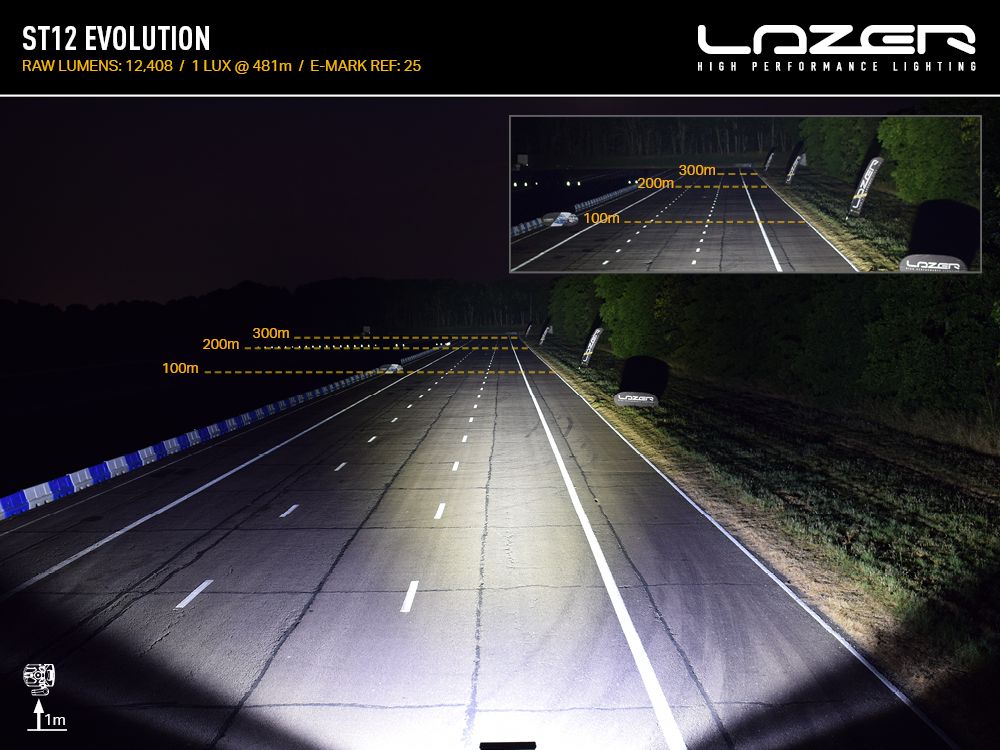

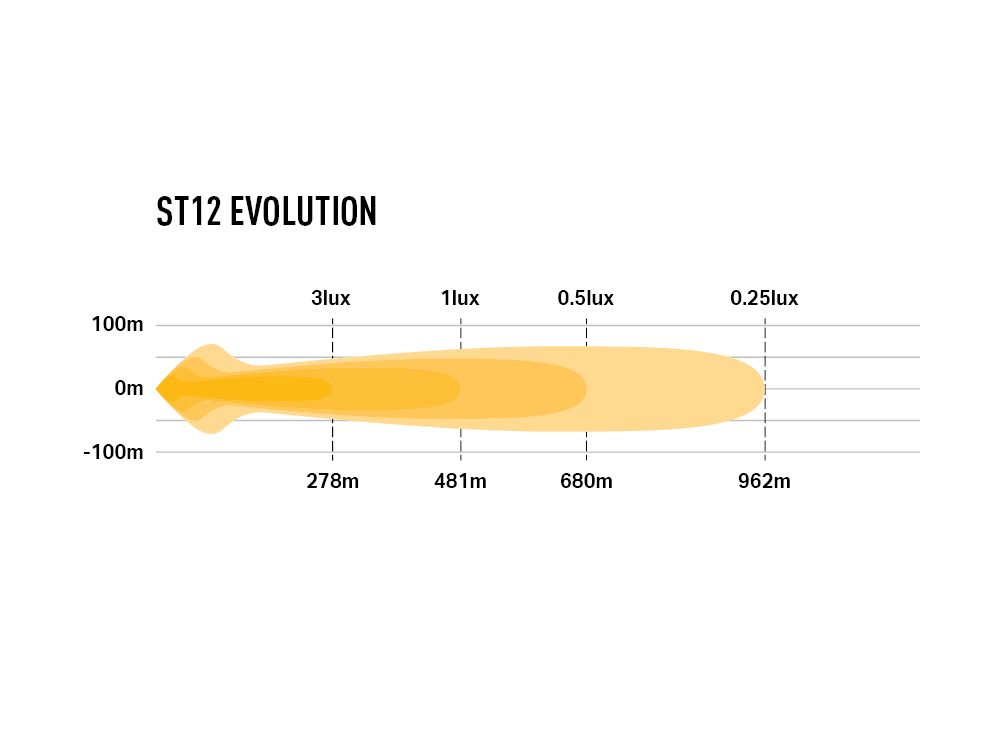

• 0.25 lux Line - 962m
• 0.5 lux Line - 680m
• 1 lux Line - 481m
• 3 lux Line - 278m
• Colour Temp: 5000K
• Total Luminous Flux: 12408 Lm
