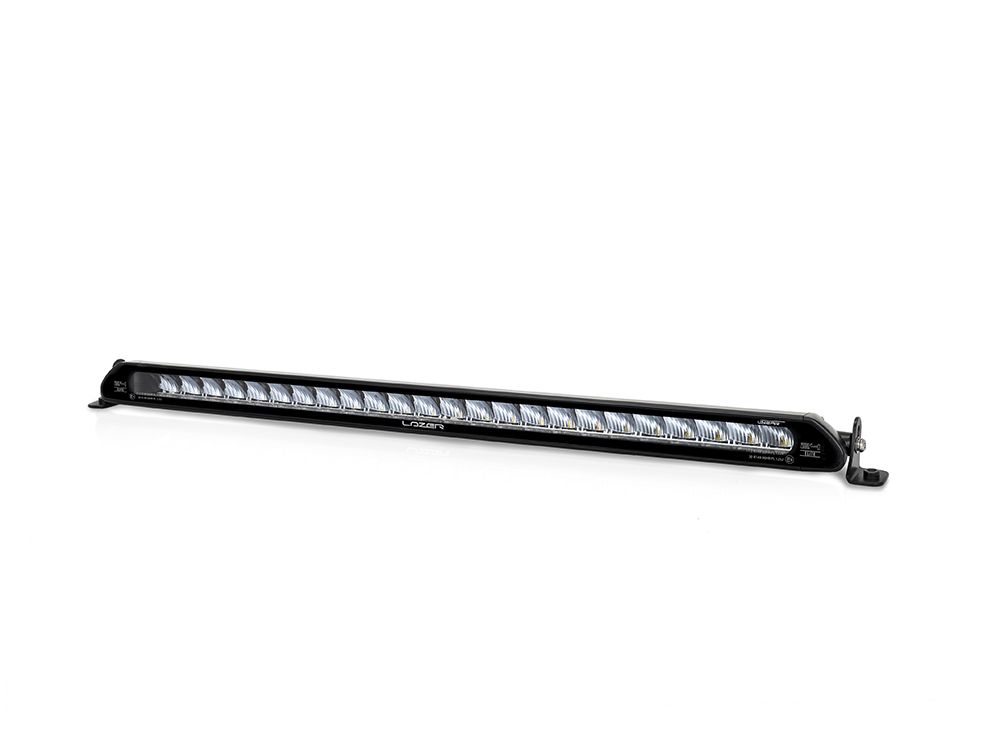

Lazer Linear 24 Elite

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

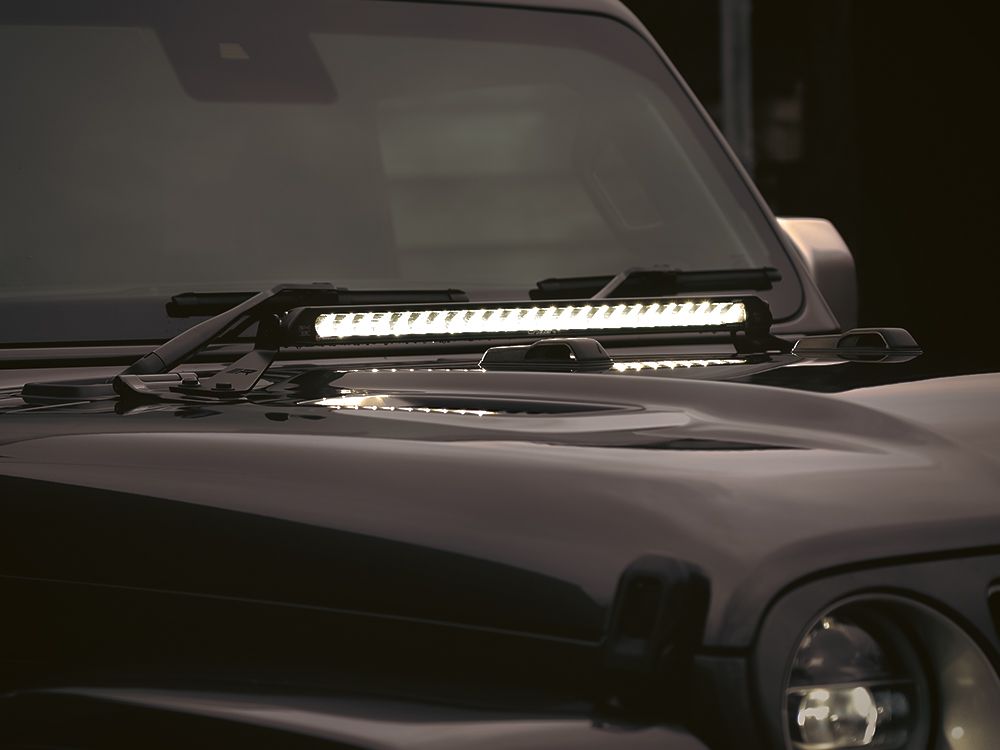

Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

Key Features

• Combination of highly efficient 3W ‘premium bin’ LEDs

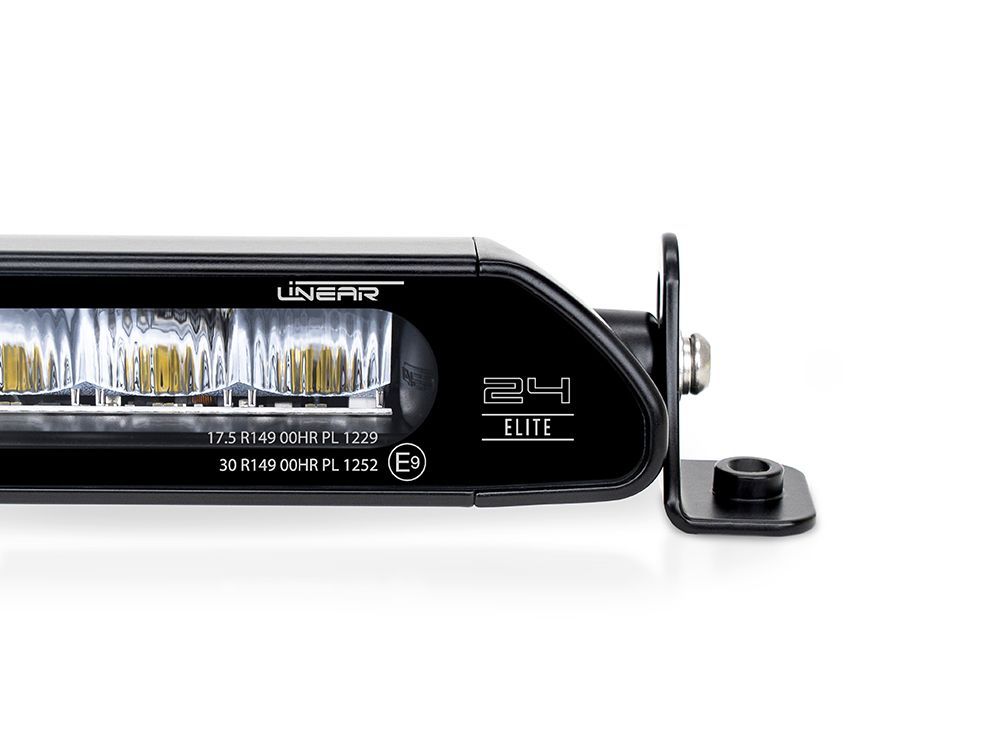

• Dual-output mode allows the light to be operated at a lower UNECE E-mark reference - (requires Linear E-Mark Cap – sold separately)
• 5000K LED colour temperature and 80CRI maximises sharpness and definition
• Vacuum-metallised optics deliver wide spread of light
• Reduced up/down spread of light suits even low mounting positions, or roof mounting
• Sleek, low profile design eases installation
• Aero design virtually eliminates wind noise on roof installations
• Flexible mounting options – anti-theft side mounting brackets included
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 10
• IP68 watertight
• Supplied with pre-wired male/female 2-pin Superseal connectors
• 5-year warranty (2-year for non-automotive/industrial applications)
• Made in the UK

Specifications

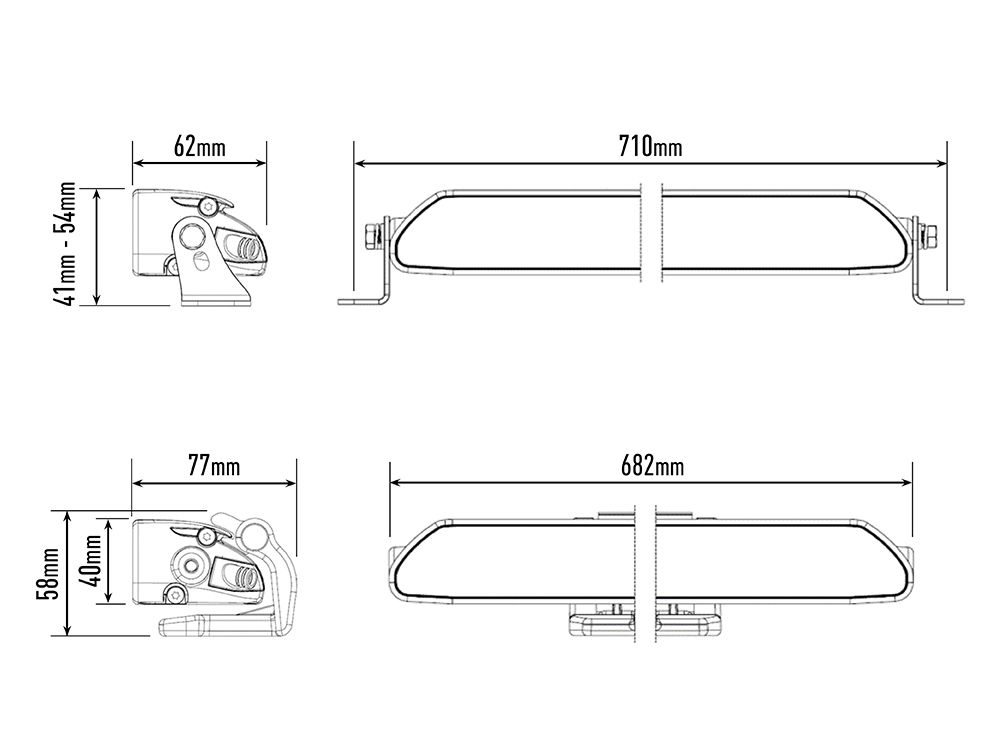

• W 682 x H 40 x D 62 mm

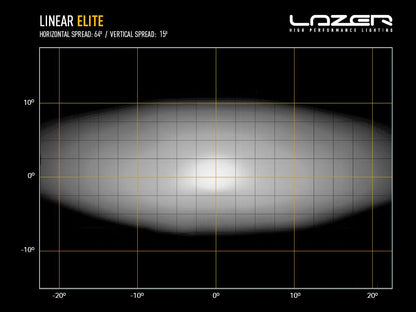

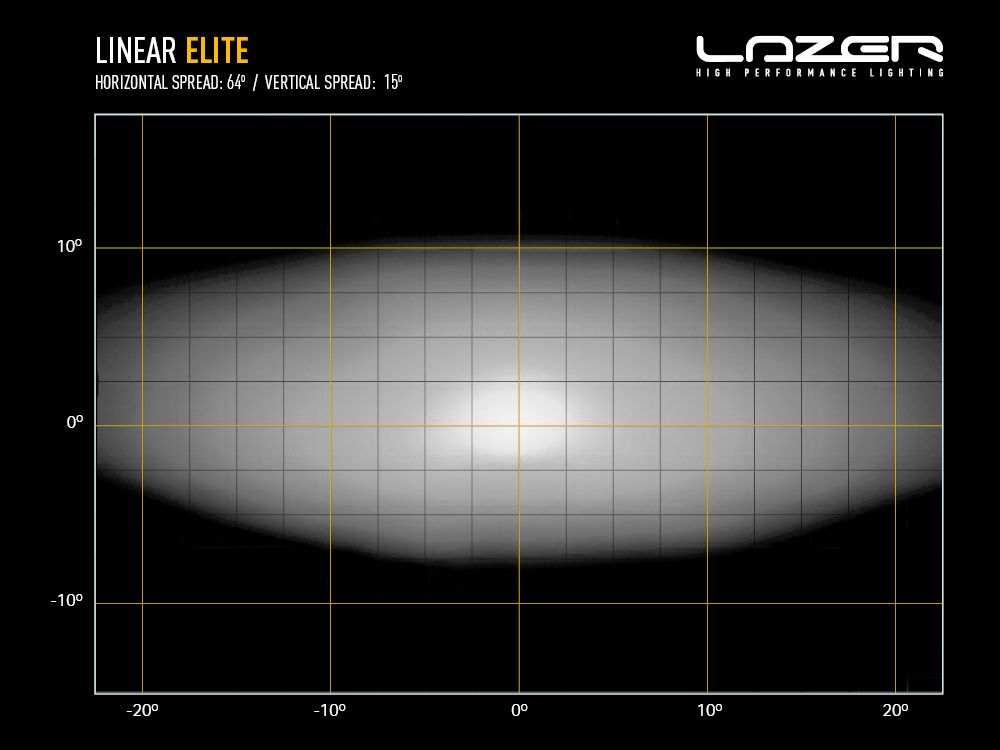

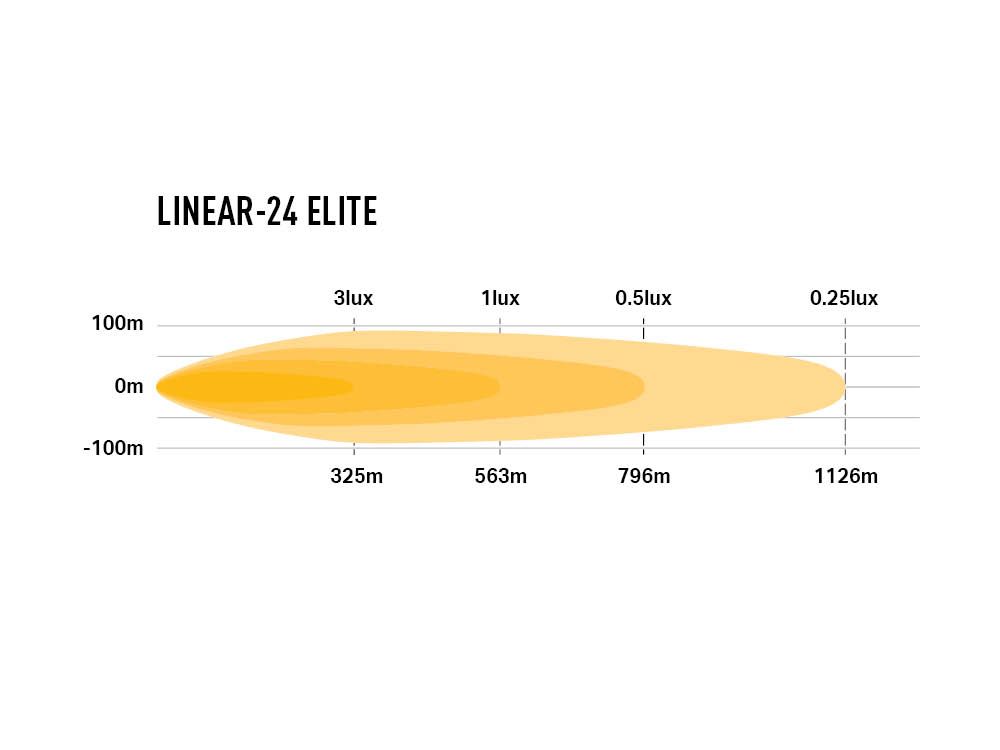

• Horizontal/Vertical Beam Angle 64° / 15°
• 0.25 lux Line - 1126m
• 0.5 lux Line - 796m
• 1 lux Line - 536m
• 3 lux Line - 325m
• Colour Temp: 5000K
• Total Luminous Flux: 18000Lm
