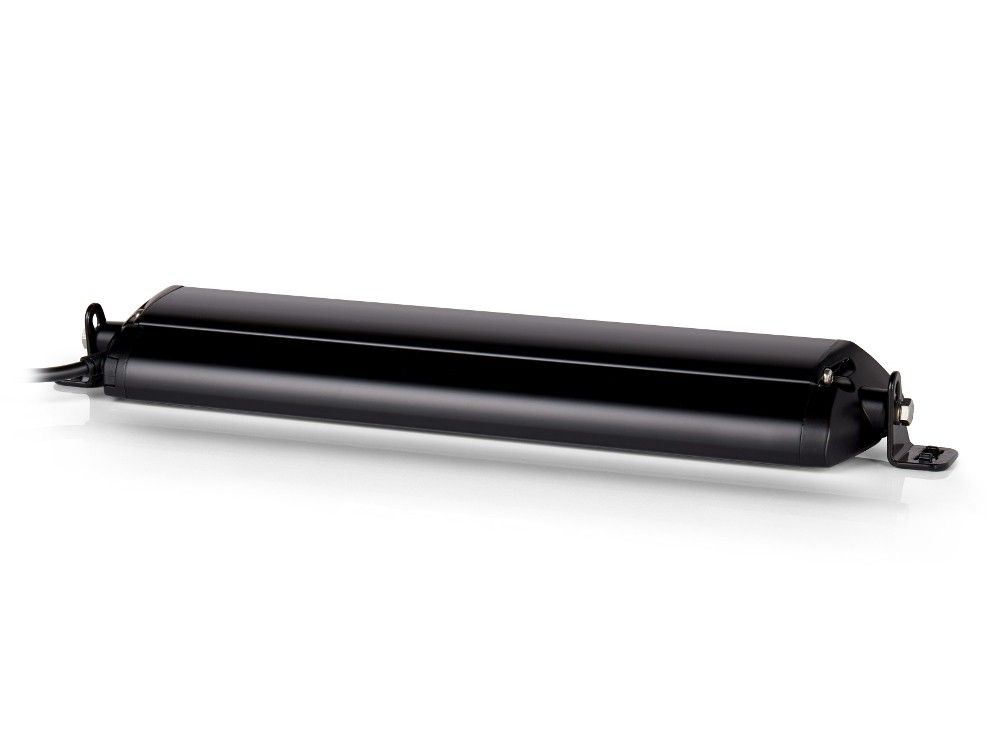

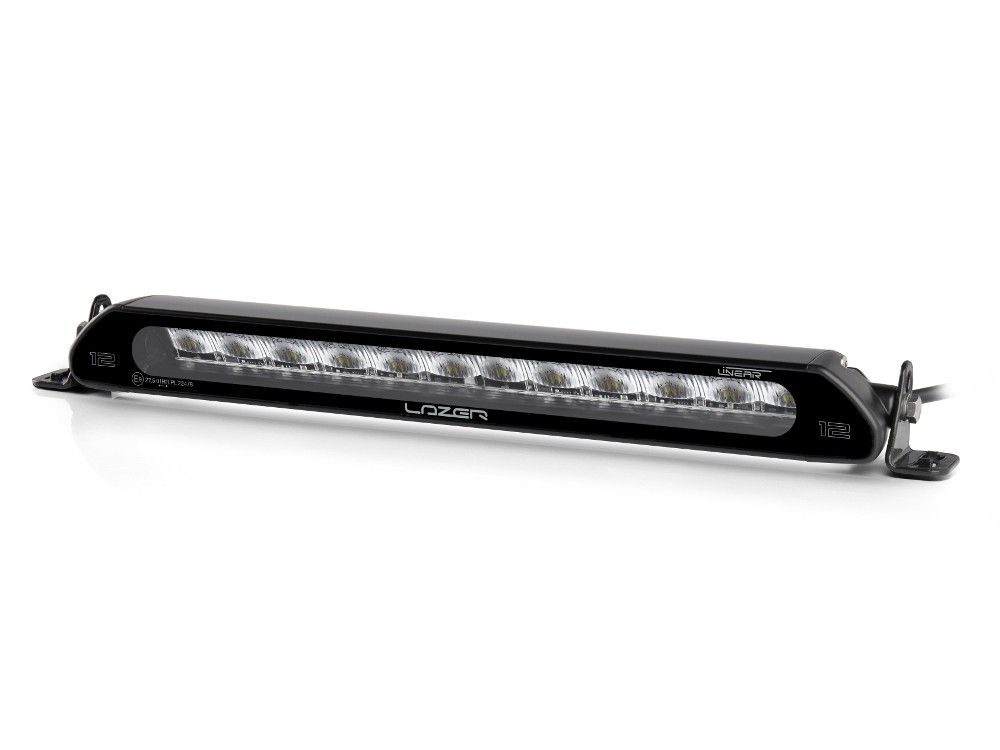

Lazer Linear 12

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. The Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

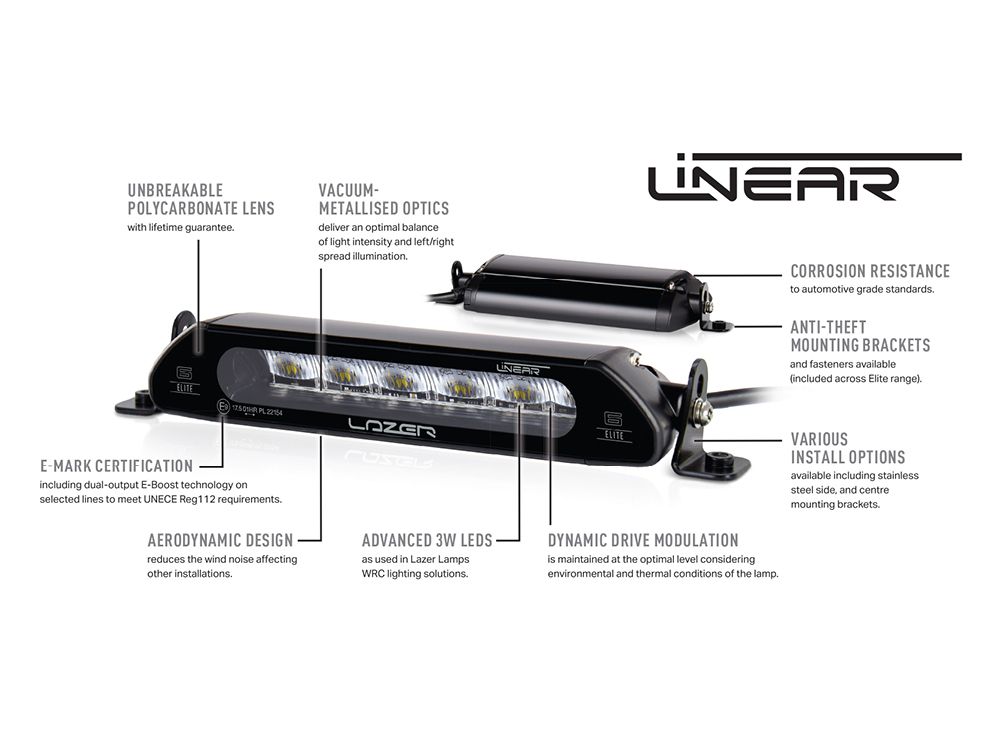

Key Features

• Highly efficient 3W LED technology
• 5000K LED colour temperature and 80CRI maximises sharpness and definition
• Vacuum-metallised optics deliver wide spread of light
• Reduced up/down spread of light suits even low mounting positions, or roof mounting
• Sleek, low profile design eases installation
• Aero design virtually eliminates wind noise on roof installations
• Includes low profile side mounting brackets
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
• UNECE approved Reg 10
• IP68 watertight
• Supplied with pre-wired male/female 2-pin Superseal connectors
• 5-year warranty (2-year for non-automotive/industrial applications)
• Made in the UK


Specifications

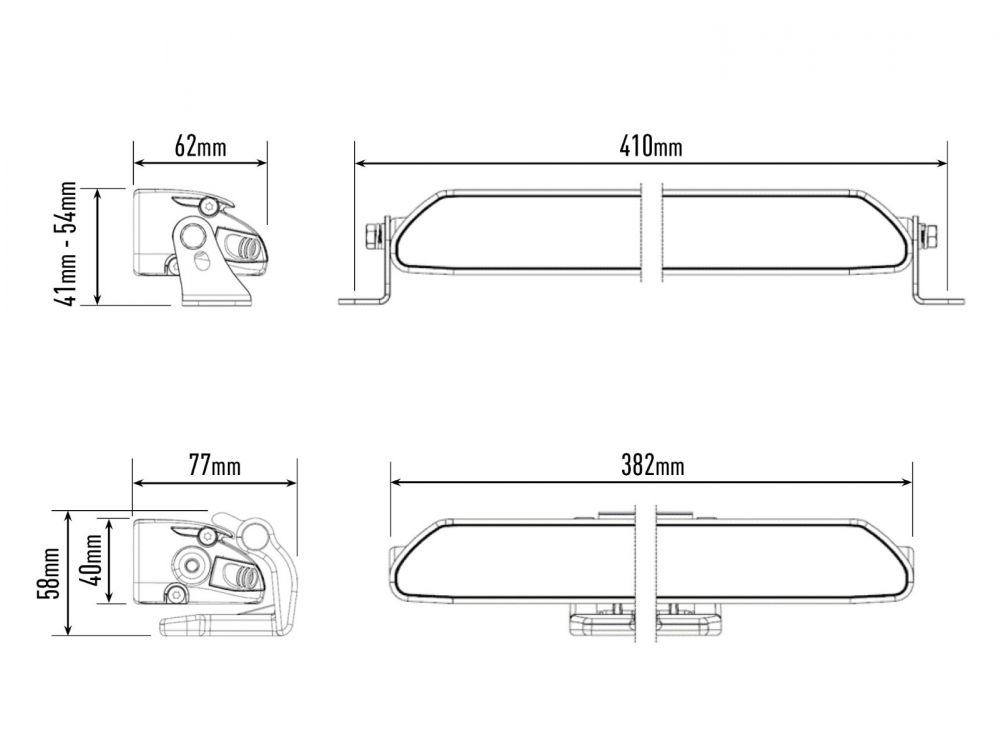

• W 382 x H 40 x D 62 mm

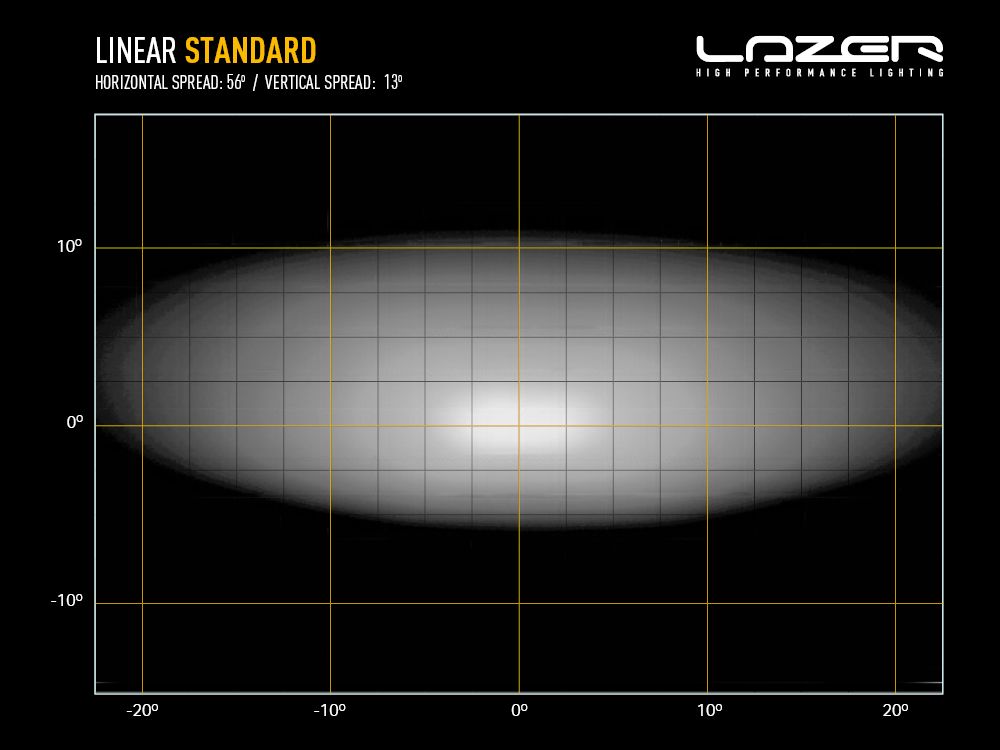

• Horizontal Beam Angle 56°

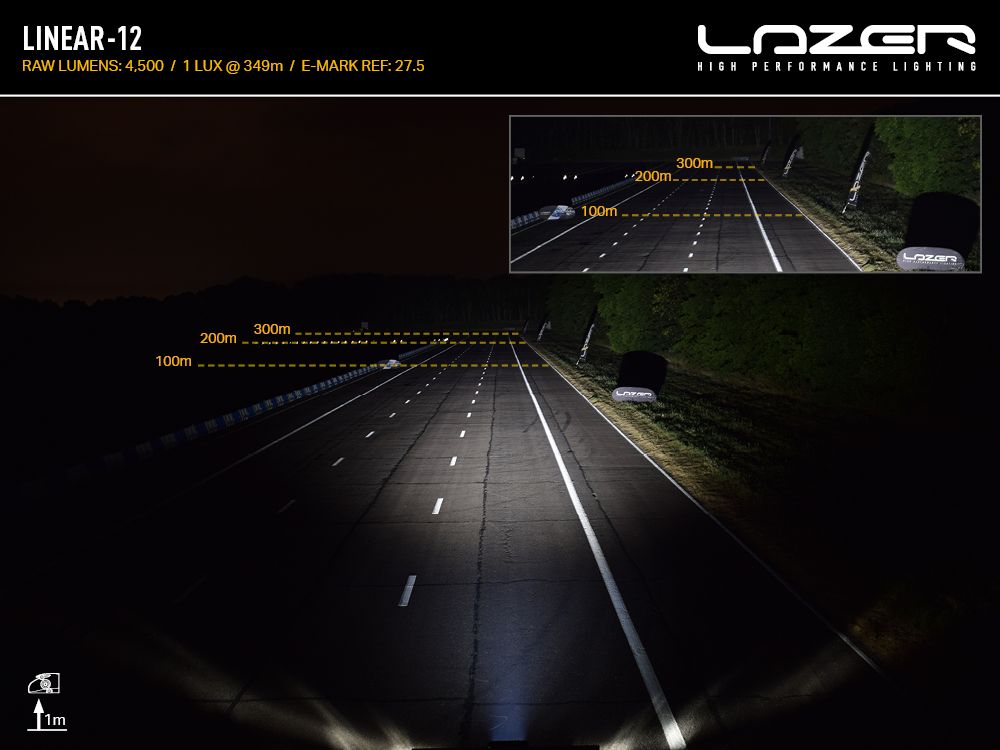

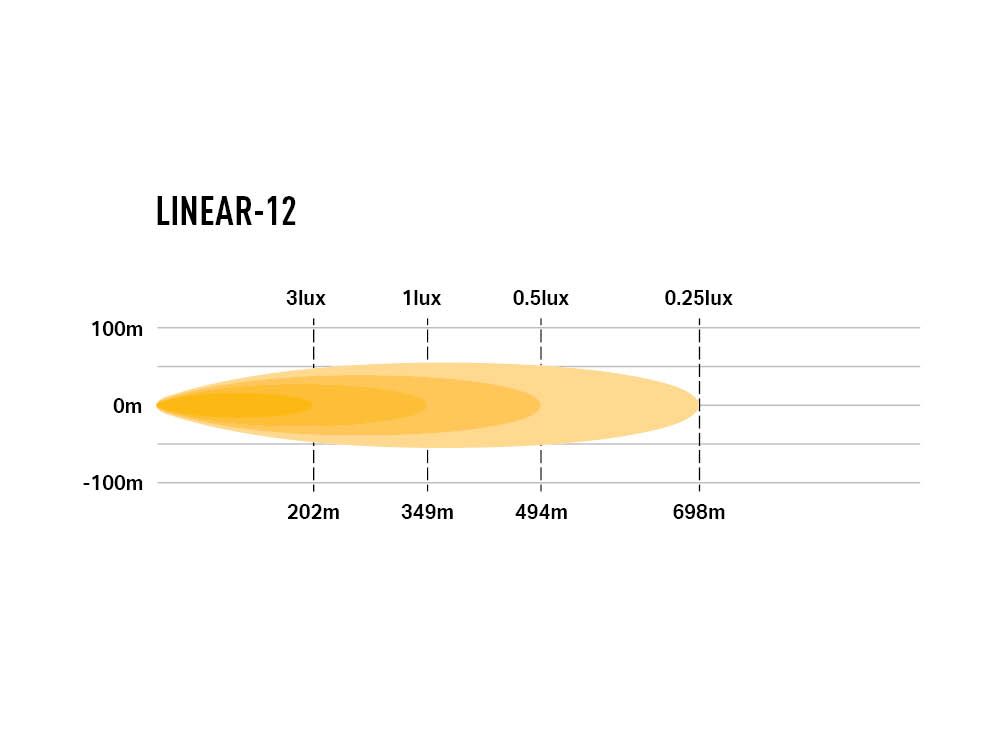

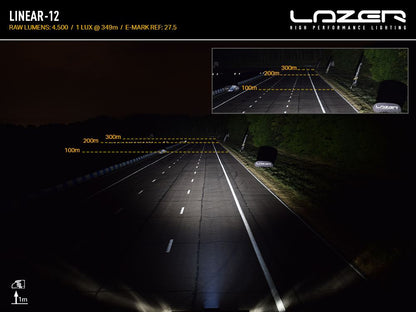

• 0.25 lux Line - 698m
• 0.5 lux Line - 494m
• 1 lux Line - 349m
• 3 lux Line - 202m
• Colour Temp: 5000K
• Total Luminous Flux: 4500Lm
