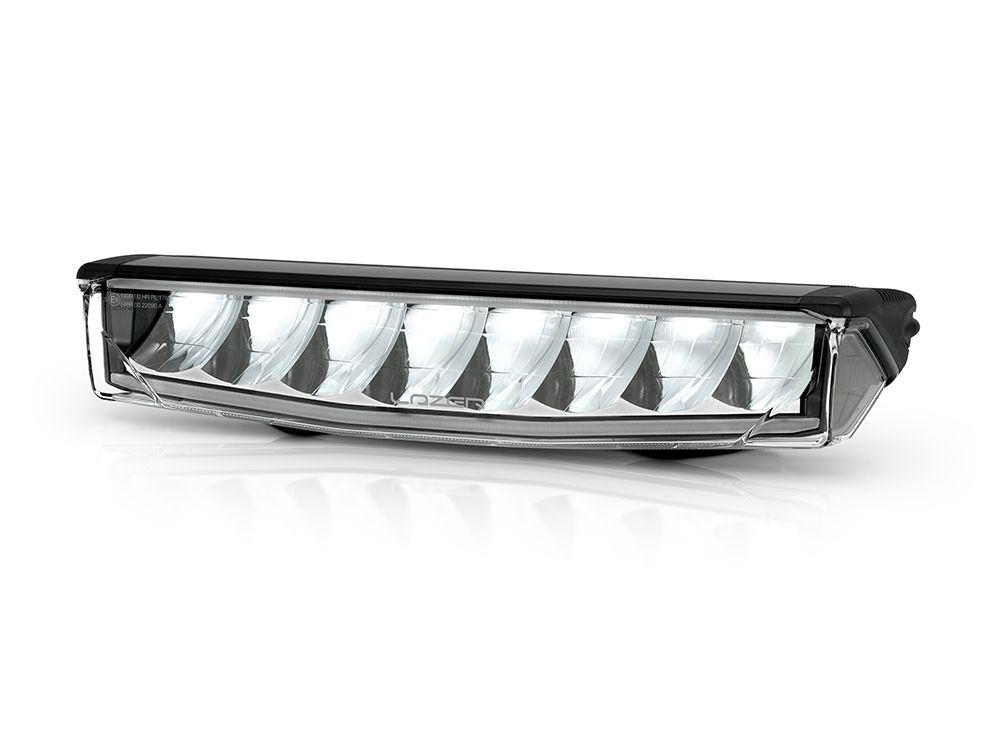

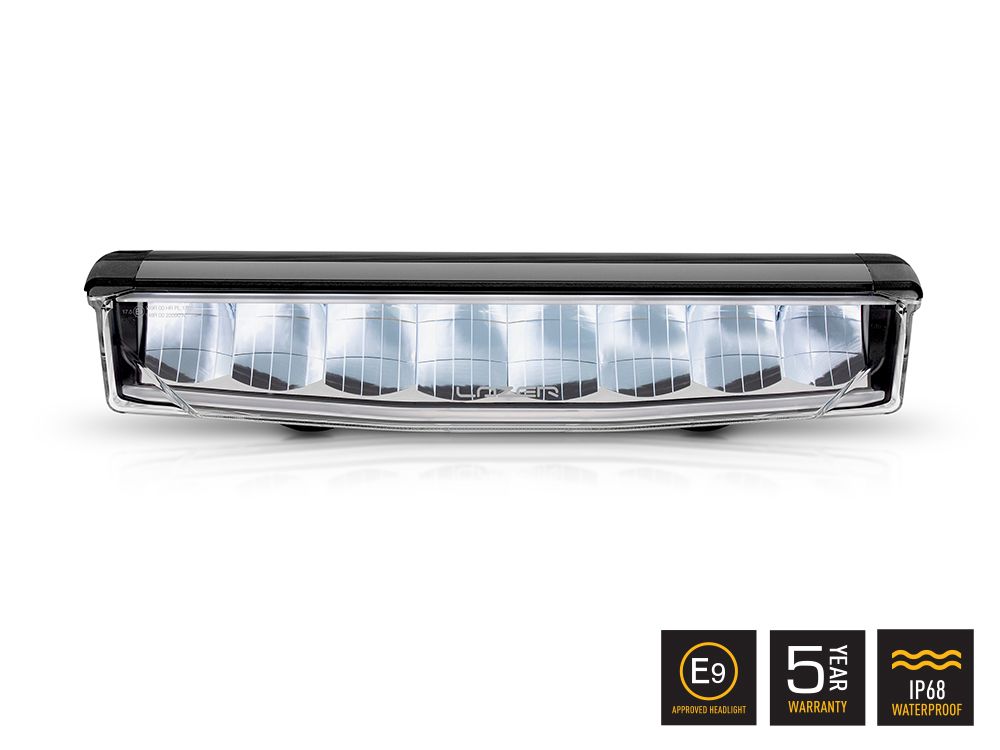

Lazer Air 90

When your truck is your livelihood and it represents you and your business, it deserves the best!

Introducing AIR, Lazer Lamps’ latest LED light bar range specially designed and engineered with the heavy truck and commercial vehicle market in mind. Every consideration has been given through our in-house UK design, engineering, and manufacturing functions to present a high-performance LED solution with striking product design elevated by a monocoque lens construction and signature position light feature. Expectant of any Lazer product, the lighting performance and build quality is completely assured.

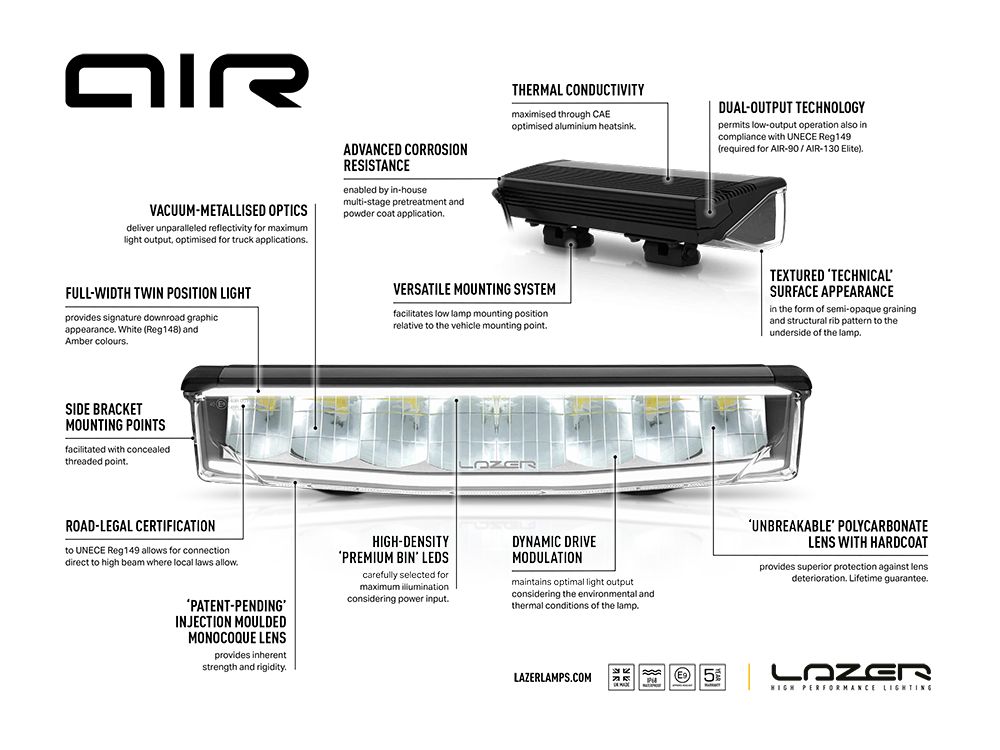

Key Features

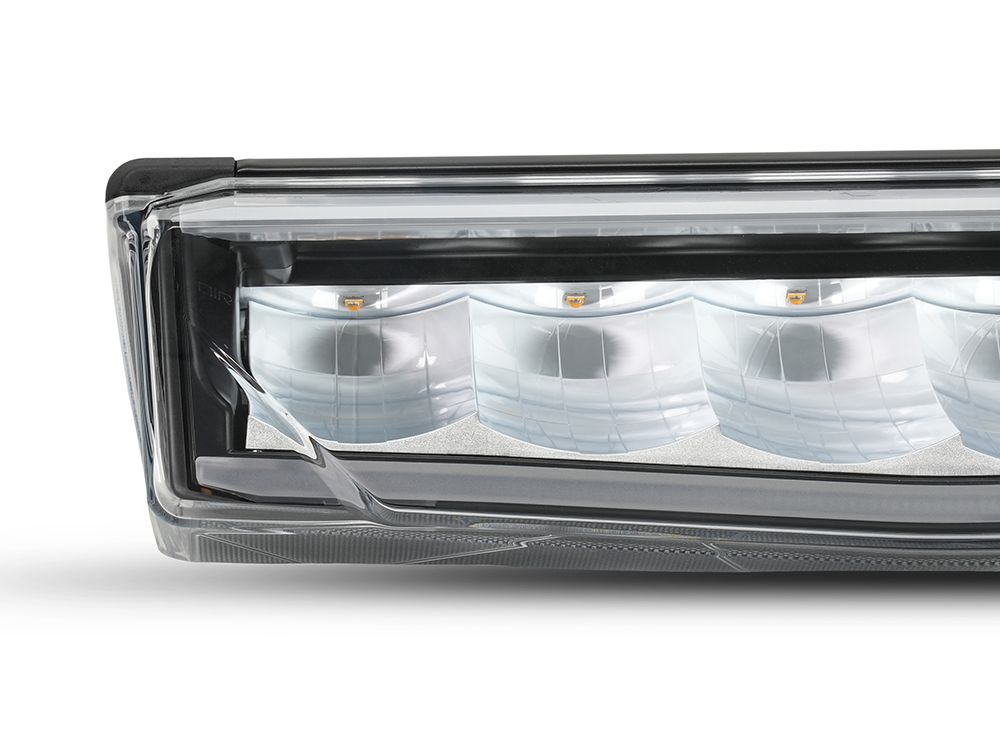

• Patent-pending injection moulded monocoque lens with texture effect to the underside

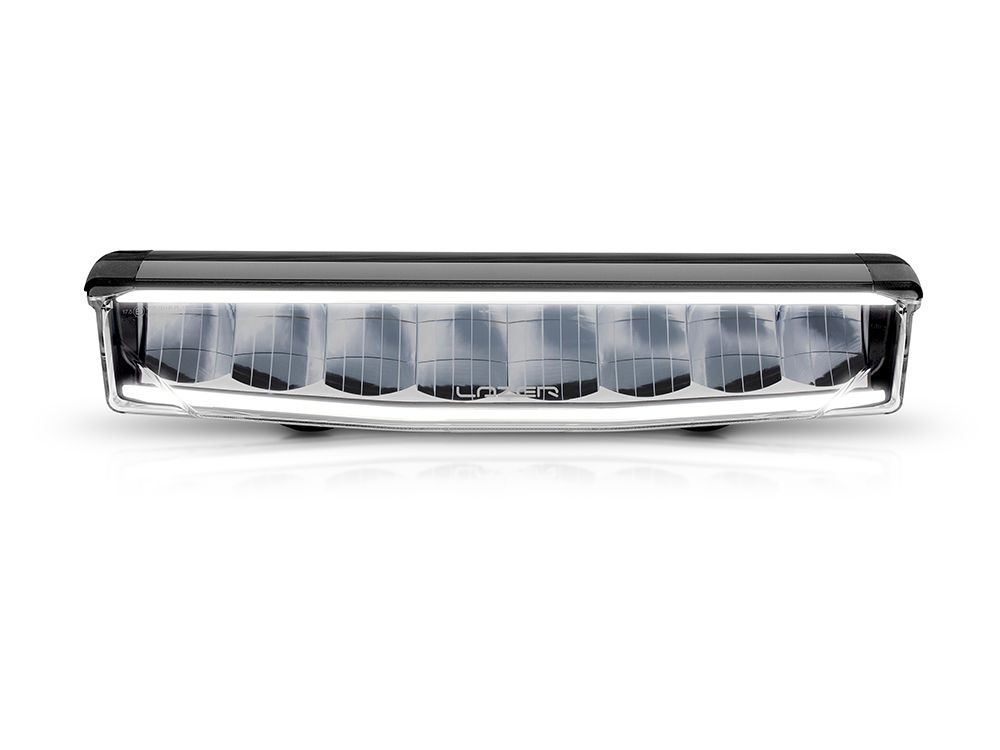

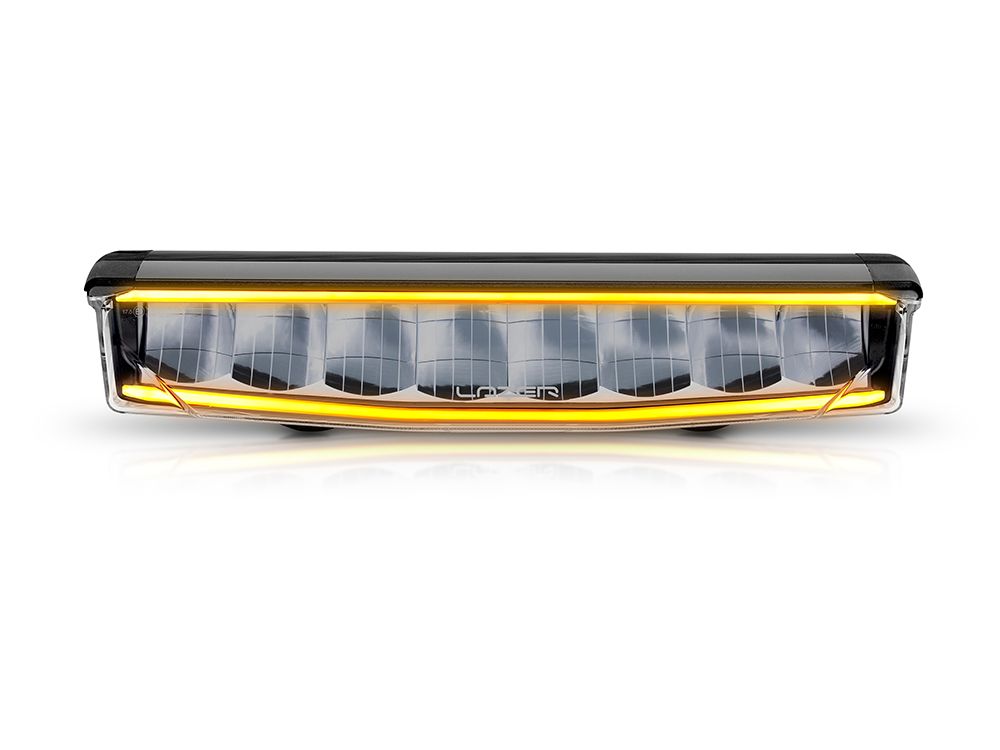

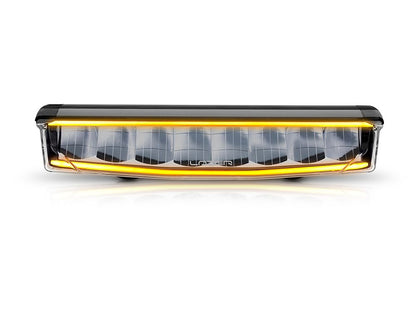

• Integrated white or amber position light guides
• Adoption of the latest high-efficiency premium-bin LEDs
• Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road
• Patent-pending lamp design
• ECE approved for on-road high beam (E-Boost technology) and position/side light function (white only)

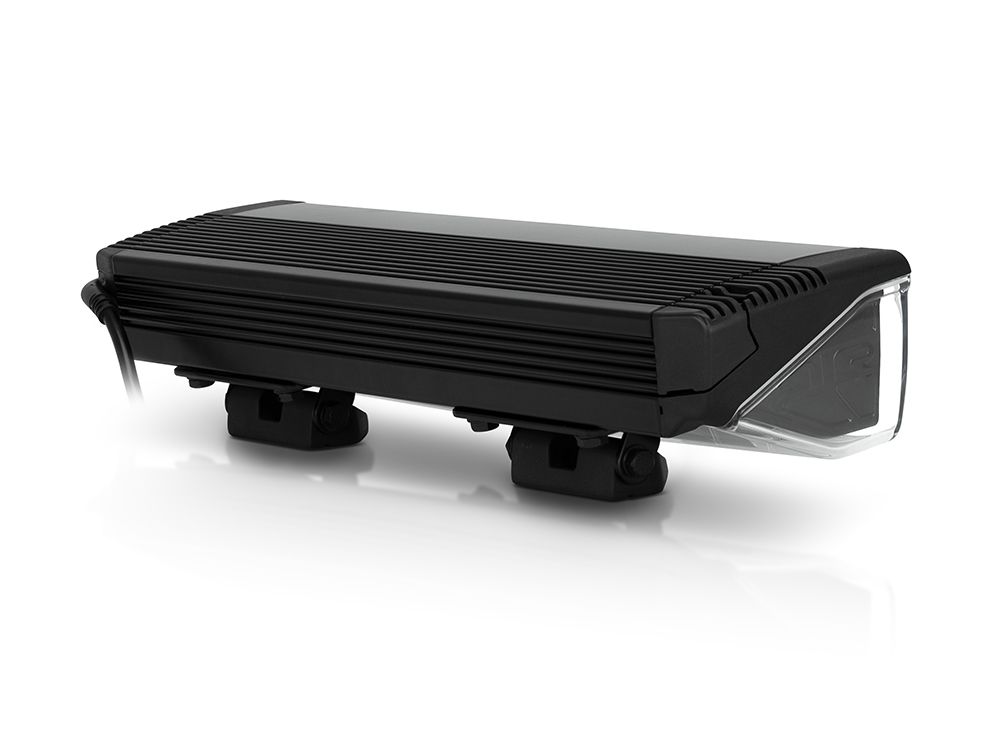

• Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point.
• Threaded mounting locations to enable side mounting (brackets sold separately)
• CAE optimised heatsink offers improved thermal dynamics
• Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
• Electronic thermal management
• ‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee
• 20cm lamp cable complete with male/female 3-pin Superseal connectors
• IP68 watertight
• 5-year warranty (2-year for non-automotive/industrial applications)
• Made in the UK


Specifications

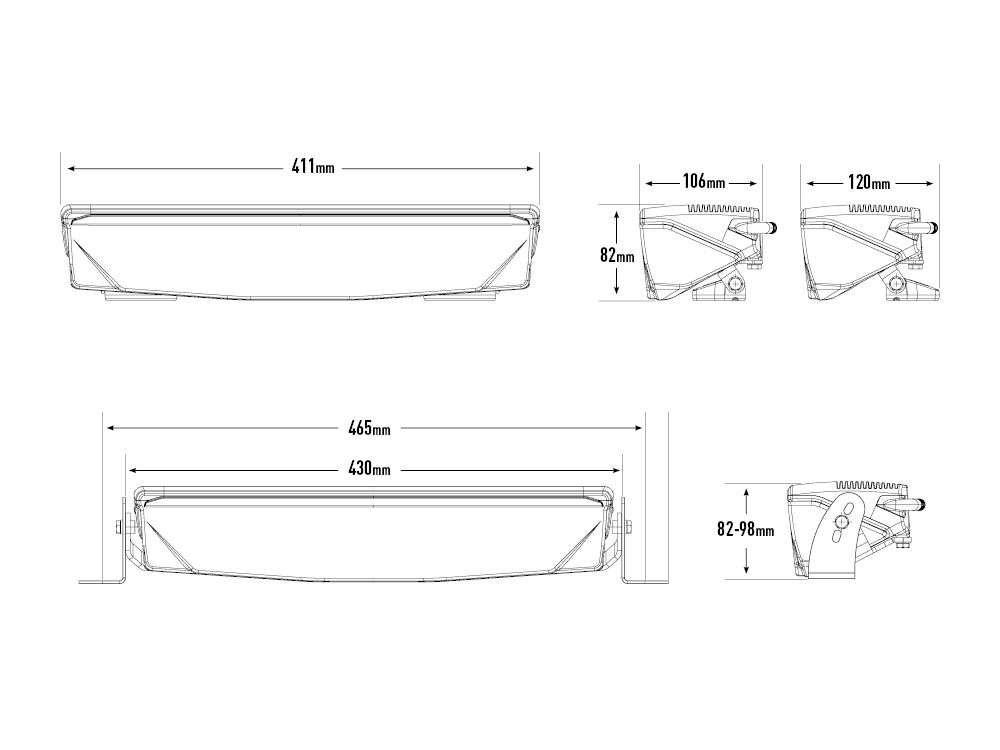

• W 411 x H 82 x D 106 mm

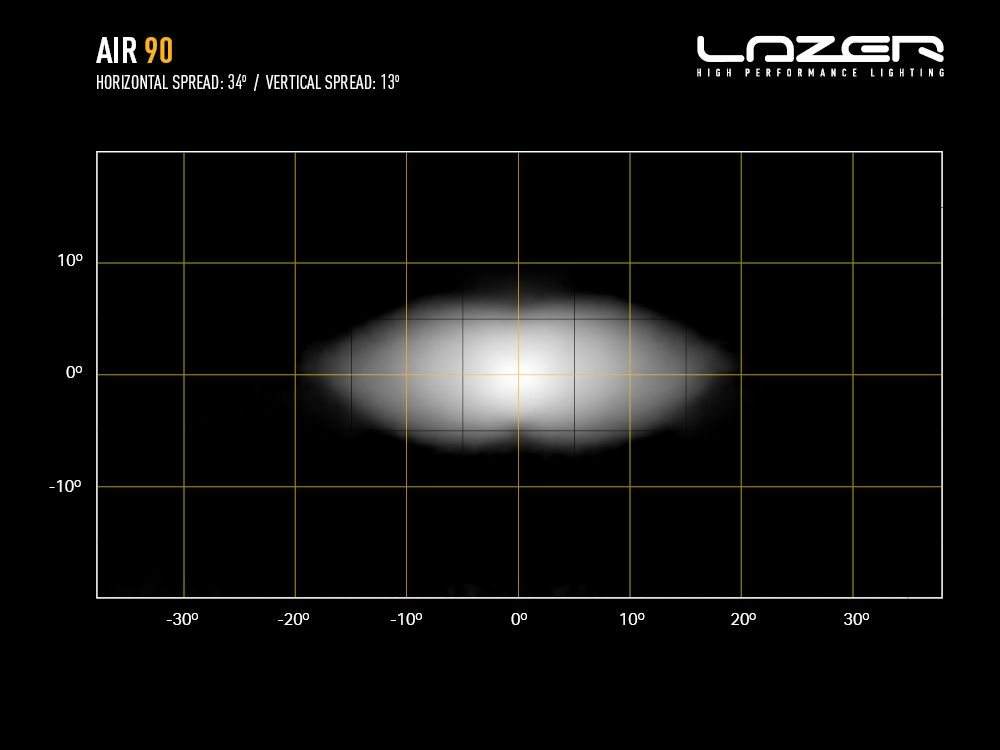

• Horizontal/Vertical Beam Angle 34° / 13°

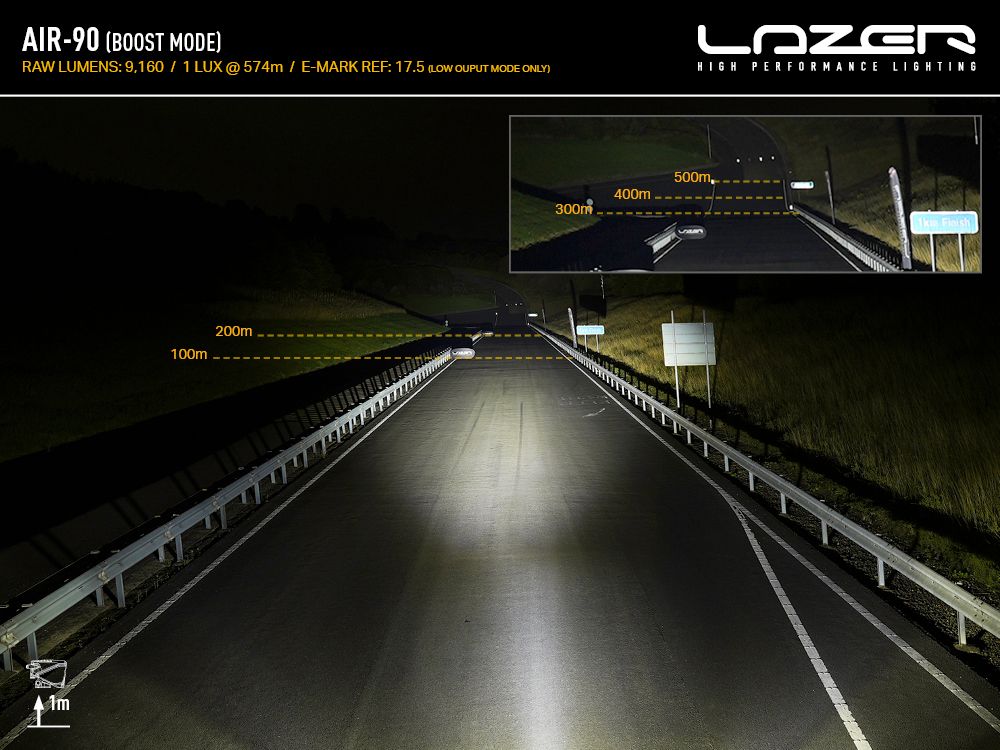

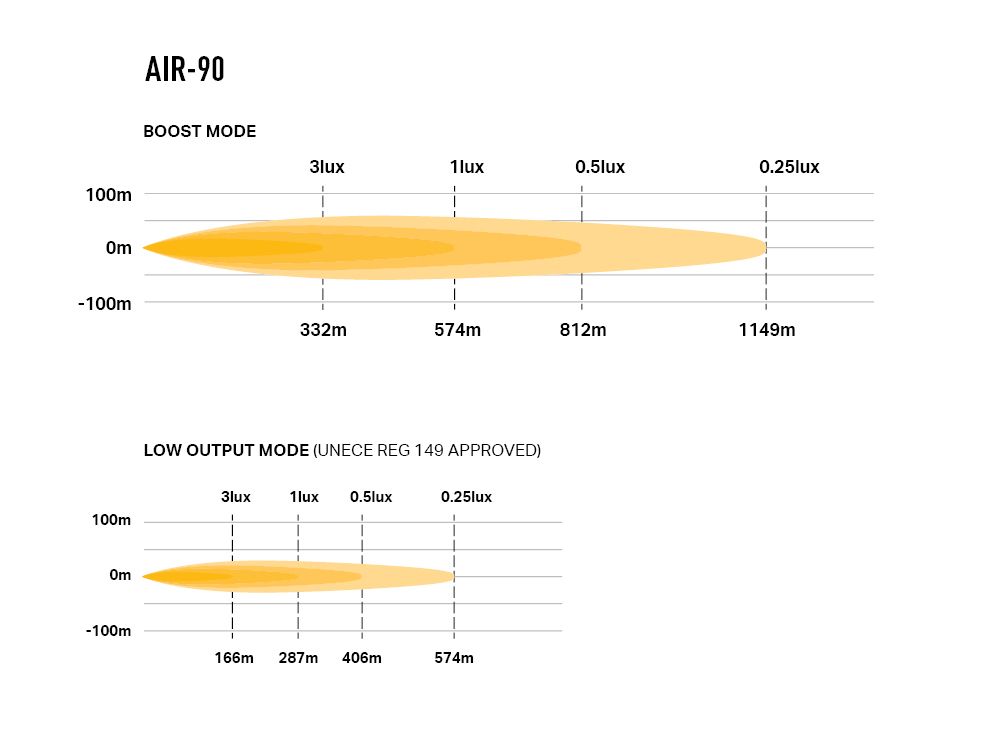

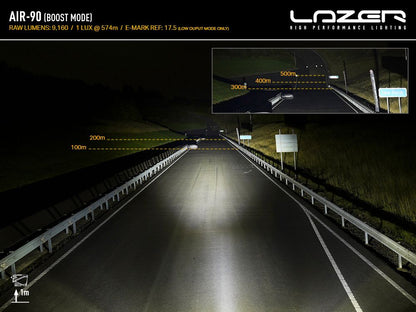

• 0.25 lux Line - 1149m
• 0.5 lux Line - 812m
• 1 lux Line - 574m
• 3 lux Line - 332m
• Colour Temp: 5000K
• Total Luminous Flux: 9160Lm
