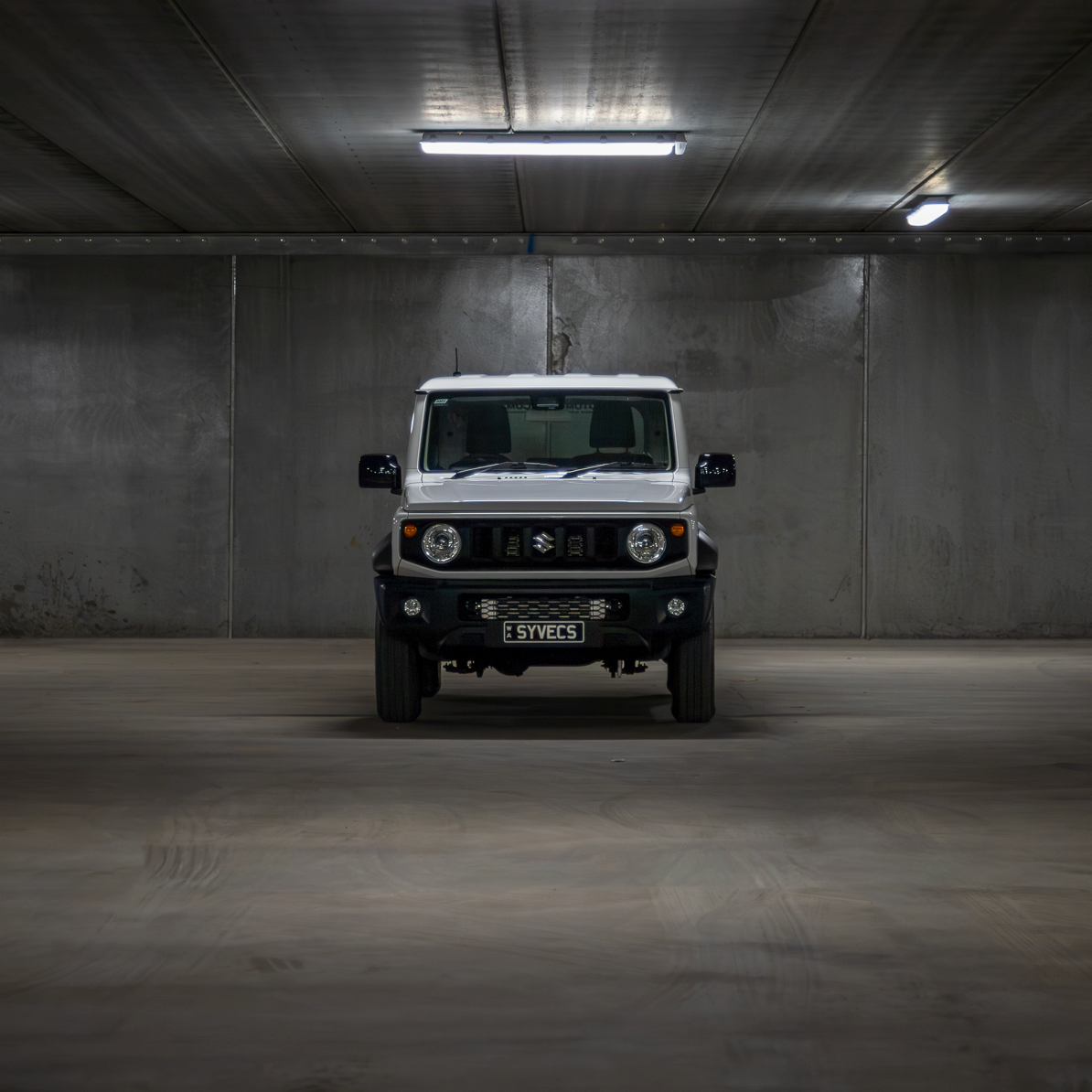

AMV Automotives JB74 Suzuki Jimny build, fitted with a Syvecs ECU, AMV Garret Turbo kit, AMV Intercooler, AMV Custom fuel distribution system, Ohlins Remote Res Shocks.

Syvecs Sensors

Explore the range of sensors to work with your Syvecs ECU setups.

4 Bar Map Sensor
Comes supplied with 6mm Hose Barb. 1ms Response time

The fast response air temp sensor provide great response and accuracy.


Technical Specifications

  • Process Connection: 3/8 NPTF Fitting
  • Response Time: <10Sec
  • Accuracy: +1c
  • Thermal Effects: Zero +0.04% FS/C
  • Power Supply: 5V
  • Construction: Brass
  • Electrical Connection: 26AWG Screened Cable
  • Protection Class: IP67
  • Weight: 20g
  • Operating range: -40c to +135c

Capable of reading alcohol contents of fuel from 0-100% range. Ideal to work with the Syvecs flex fuel strategy on all of their management systems

Comes with: 6 Fittings and Connector Kit
Power Supply: 12v
Output: 0-5v PWM

Fluid pressure sensor which works in both Oil or Fuels


Technical Specifications

  • Process Connection: 1/8 Inch NPT Male
  • Safe Over Range: 150% of Range
  • Burst Pressure: >300% of Range
  • Accuracy: 0.5%FS
  • Thermal Effects: Zero +0.04% FS/C
  • Output: 0.5v to 4.5v
  • Power Supply: 5V
  • Construction: Stainless Steel
  • Electrical Connection: 60cm - 26AWG Screened Cable
  • Protection Class: IP67
  • Weight: 60g

The Syvecs Fluid temperature sensor is engineered to measure the tempuratures of oil, water, or fuel. Its negative temperature coefficient (NTC) sensing element decreases resistance as temperature increases, enhancing conductivity.


Technical Specifications

  • Temperature Range: Operates effectively between -40°C and 150°C.
  • Accuracy: ±1.4°C at 25°C; ±0.8°C at 100°C.
  • Nominal Resistance: 2.5 kΩ ±6% at 20°C.
  • Response Time: Less than 15 seconds (τ63) in still water.
  • Mechanical Specifications:
  • Male thread: M12 x 1.5
  • Wrench size: 19 mm
  • Installation torque: 18 Nm
  • Weight (without wire): 28.3 g
  • Sealing: Aluminum washer


Characteristic Application

  • -40°C : 45,313 Ohm
  • -30°C : 26,114 Ohm
  • -20°C : 15,462 Ohm
  • -10°C : 9,397 Ohm
  • 0°C : 5,896 Ohm
  • 10°C : 3,792 Ohm
  • 20°C : 2,500 Ohm
  • 30°C : 1,707 Ohm
  • 40°C : 1,175 Ohm
  • 50°C : 834 Ohm
  • 60°C : 596 Ohm
  • 70°C : 436 Ohm
  • 80°C : 323 Ohm
  • 90°C : 243 Ohm
  • 100°C : 187 Ohm
  • 110°C : 144 Ohm
  • 120°C : 113 Ohm
  • 130°C : 89 Ohm
  • 140°C : 71 Ohm
  • 150°C : 57 Ohm

Syvecs full range knock sensor has a working frequency of 1hz -20hz.

Installation is done via a M8 Bolt onto the Engines block and need to be tightened to 20nm.

Comes complete with mating connector and pins

Laboratory Grade, fast acting wideband sensor with a capable range of 8:1 -30:1

  • Platinum coated
  • Thimble type sensor
  • Length 409mm / 16.1"
  • Zirconium material

Lab Grade inconel high temperature/fast responding k-type thermocoupler. Suitable for -100 to +1100C operation.

This has a 100mm long, 3mm diameter probe tip which can be bent (minimum radius of 20mm) to ease installation.

It has a metal-braided PTFE cable that’s 2m long, terminated with a standard “mini-K” plug. It comes complete with a compression gland suitable for a 1/8″ BSP boss
